dataURL Method |

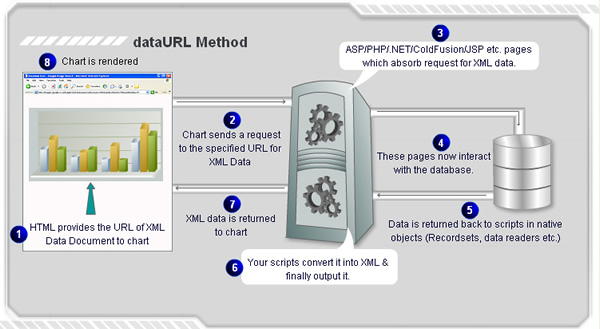

In this method, you provide the URL of XML Data document to FusionWidgets. The chart now sends a request for XML data to the specified URL, reads it, parses it and then renders the charts accordingly. The following diagram would help you understand better: |
|
As you can see above, the following steps are involved in this process:
If your dataURL contains special characters like ?, & etc., you need to URL Encode. Also, if you want any parameters as a part of dataURL to your server side script, you'll need to URL Encode the entire dataURL. Example: if you want to provide data URL as Data.asp?id=1&subId=2, it should be provided as Data%2Easp%3Fid%3D1%26subId%3D2 |
Effectively, in this process you need the following to build a chart:
|
Sample Usage of dataURL method using direct HTML Embedding Method |
<object classid="clsid:d27cdb6e-ae6d-11cf-96b8-444553540000" codebase="http://fpdownload.macromedia.com/pub/shockwave/cabs/flash/swflash.cab#version=8,0,0,0" width="500" height="300" id="Funnel" align="middle">
<param name="movie" value="Funnel.swf" /> <param name="FlashVars" value="&dataURL=Data.asp" /> <param name="quality" value="high" /> <embed src="Funnel.swf" FlashVars="&dataURL=Data.asp" quality="high" bgcolor="#ffffff" width="400" height="300" name="Funnel" align="middle" allowScriptAccess="sameDomain" type="application/x-shockwave-flash" pluginspage="http://www.macromedia.com/go/getflashplayer" /> </object> |
Sample Usage of dataURL method using FusionCharts JavaScript Class |
<div id="chart1div"> This text is replaced by the chart. </div> <script type="text/javascript"> var chart1 = new FusionCharts("Funnel.swf", "ChId1", "600", "400", "0", "0"); chart1.setDataURL("Data.asp"); chart1.render("chart1div"); </script> |
dataURL method is the recommended method as it does not place any limits on the size of XML Data. Also, if you're using special characters (UTF-8 or double byte characters) in your XML, you need to necessarily use dataURL method. |
