Pyramid Chart > Creating a simple chart

Here, we'll create a simple pyramid chart to illustrate the concepts.


Example
For a simple pyramid chart example, we'll plot the sales figures achieved by employees of a fictional company during the first 7 months of this year. The data can be rendered as under in tabular form:
Employee Name
Sales ($)
Buchanan
20,000
Callahan
49,000
Davolio
63,000
Dodsworth
41,000
Fuller
74,000
King
49,000
Leverling
77,000
Peacock
54,000
Suyama
14,000

Converting to XML
The above data when converted to XML would look as under:

<chart caption='Sales distribution by Employee' subCaption='Jan 07 - Jul 07' numberPrefix='$' isSliced='1'>
   <set label='Buchanan' value='20000' />
   <set label='Callahan' value='49000' />
   <set label='Davolio' value='63000' />
   <set label='Dodsworth' value='41000' />
   <set label='Fuller' value='74000' />
   <set label='King' value='49000' />
   <set label='Leverling' value='77000' />
   <set label='Peacock' value='54000' />
   <set label='Suyama' value='14000' />
   <styles>
      <definition>
         <style type='font' name='captionFont' size='15' />
      </definition>
      <application>
         <apply toObject='CAPTION' styles='captionFont' />
      </application>
   </styles>
</chart>

Here, we've:

  • Defined the <chart> element with caption, sub-caption, number prefix.
  • We also configure each slice to show separated from each other by setting isSliced='1'
  • Thereafter, we provide data for each employee.
  • Finally, we apply style to increase caption font size.

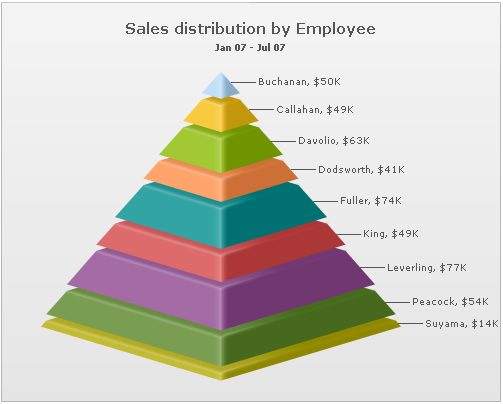

When you see this chart, you'll get a result as under:

As you can see above, the chart has now rendered each pyramid slice with its height proportional to the value.

Also, in this chart, since we've set isSliced='1' at chart level, the slicing interaction won't work.
