FusionWidgets v3 Documentation

Using Percent Sign on chart

If you're using dataURL method, you can directly embed the Percentage character in your XML and then use it as under:

<chart numberSuffix='%'>

    <set label='John' value='42.0' />

    <set label='Mary' value='29.5' />

    <set label='Tom' value='52.3' />

</chart>

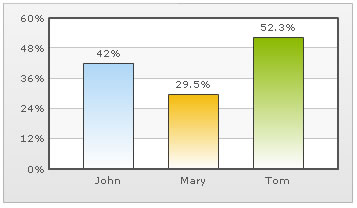

You'll now get the following output:

When using dataXML method, you need to encode Percent character to %25 - else, you'll get an error on many browsers. Following is the full HTML Code to embed the chart:

<div id="chart1div">
   This text is replaced by the chart.
</div>
<script type="text/javascript">
   var chart1 = new FusionCharts("Column2D.swf", "ChId1", "350", "200", "0", "0");
   chart1.setDataXML("<chart numberSuffix='%25'><set label='John' value='42.0' /><set label='Mary' value='29.5' /><set label='Tom' value='52.3' /></chart>");
   chart1.render("chart1div");
</script>

You'll again get the same output as before.
