FusionMaps with ASP.NET (C#) > Using Data from Form

In this section, we will see how to generate a FusionMap using data collected from Form.

For the sake of demo, let us take the example of a fictional company that wants to plot the world-wide sales report for a particular day on a map.

The example first loads a page that has a form to accept data for all the continents. Here, we have put some default data which can be modified as per user's wish. This data will be submitted to another ASP.NET (C#) page. This page will acquire the data and plot it on the map. For the sake of simplicity, we wouldn't do any processing or checking on this data. However, your real life applications might process data before presenting it on the map.

Before proceeding further, we recommend to go through the section "How to use FusionMaps" for a better insight.

The code examples contained in this page are present in Download Package > Code > FusionMapCS > FormBased folder.

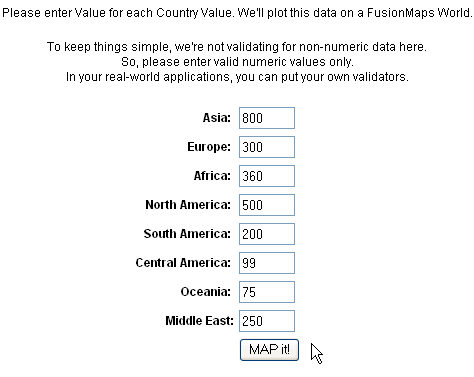

The form is contained in the Default.aspx page. Shown below is a snapshot:

This is a very simple form which submits to FormSubmit.aspx.

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="FormSubmit.aspx.cs" Inherits="FormBased_FormSubmit" %>
<html>
<head>
     <title>FusionMaps v3 - Form Based Example</title>
     <script language="Javascript" src="../JSClass/FusionMaps.js"></script>
</head>
<body>
    <form id='form1' name='form1' method='post' runat="server">

        <% // Show the Map %>
        <asp:Literal ID="FusionMapsContainer" runat="server"/>

    </form>
</body>
</html>

The work of requesting the data from submitted form and creating the map is done in FormSubmit.aspx.cs, present in the same folder. It contains the following code:

using System;
using System.Data;
using System.Configuration;
using System.Collections;
using System.Web;
using System.Web.Security;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.WebControls.WebParts;
using System.Web.UI.HtmlControls;
using System.Text;
// Using FusionMaps.dll
using InfoSoftGlobal;

public partial class FormBased_FormSubmit : System.Web.UI.Page
{
   /// <summary>
   /// This program takes Maps Request value and convert into an Array
   /// finally convert the data into FusionMaps dataXML to render map
   /// </summary>
   protected void Page_Load(object sender, EventArgs e)
   {
      // Define dataArray Two dimension string Array element. 1st column take
      // map internal id and 2nd column take Value.
      string[,] dataArray = new string[8, 2];

      // Array data assigned from Context object Items
      // In this example, we're directly showing this data back on Map.
      // In your apps, you can do the required processing and then show the
      // relevant data only.

      dataArray[0, 0] = "01"; dataArray[0, 1] = Context.Items["AS1"].ToString();
      dataArray[1, 0] = "02"; dataArray[1, 1] = Context.Items["EU"].ToString();
      dataArray[2, 0] = "03"; dataArray[2, 1] = Context.Items["AF"].ToString();
      dataArray[3, 0] = "04"; dataArray[3, 1] = Context.Items["NA"].ToString();
      dataArray[4, 0] = "05"; dataArray[4, 1] = Context.Items["SA"].ToString();
      dataArray[5, 0] = "06"; dataArray[5, 1] = Context.Items["CA"].ToString();
      dataArray[6, 0] = "07"; dataArray[6, 1] = Context.Items["OC"].ToString();
      dataArray[7, 0] = "08"; dataArray[7, 1] = Context.Items["ME1"].ToString();

      /*
         Now that we've the data in variables, we need to convert this into XML.
         The simplest method to convert data into XML is using string concatenation.
      */
      StringBuilder strXML = new StringBuilder();

//Initialize <map> element
strXML.Append("<map borderColor='FFFFFF' connectorColor='000000' fillAlpha='70' hoverColor='FFFFFF' showBevel='0'>");

      // Set colorRange's Maximum and minimum value for displaying color range
      strXML.Append("<colorRange>");
      strXML.Append("<color minValue='1' maxValue='350' displayValue='Population - 1 to 350' color='CC0001' />");
      strXML.Append("<color minValue='350' maxValue='500' displayValue='Population - 350 to 500' color='FFD33A' />");
      strXML.Append("<color minValue='500' maxValue='700' displayValue='Population - 500 to 700' color='069F06' />");
      strXML.Append("<color minValue='700' maxValue='1000' displayValue='Population - 700 or above' color='ABF456' />");
      strXML.Append("</colorRange><data>");

      // Fetch Data from array
      for (int i = 0; i < dataArray.GetLength(0); i++)
      {
         // Set each map <entity> id and value
         strXML.AppendFormat("<entity id='{0}' value='{1}' />", dataArray[i, 0], dataArray[i, 1]);

}

// Close <data> element
strXML.Append("</data>");

      // Add Style on map
      strXML.Append("<styles><definition><style type='animation' name='animX' param='_xscale' start='0' duration='1' /><style type='animation' name='animY' param='_yscale' start='0' duration='1' />");
      strXML.Append("</definition><application><apply toObject='PLOT' styles='animX,animY' /></application></styles>");

// Close <map> element
strXML.Append("</map>");

      // Create Map embedding HTML with data contained in strXML
      // We use FusionMaps class of InfoSoftGlobal namespace (FusionMaps.dll in BIN folder)
      // RenderMap() generates the necessary HTML needed to render the map
      string mapHTML=FusionMaps.RenderMap("../Maps/FCMap_World8.swf", "", strXML.ToString(), "mapid", "600", "400", false, false);

      //embed the chart rendered as HTML into Literal - FusionMapsContainer
      FusionMapsContainer.Text = mapHTML;

   }

}

Like the first Example - Using dataXML Method, we call the showMap() function to load and render the map. Let us now discuss the steps involved in this new showMap() function.

As you can see in the above code, we're doing the following:

Requesting data from the submitted form and storing it in local array - dataArray.
Creating an XML data document using string concatenation and storing it in strXML variable by iterating through dataArray.
Using InfosoftGlobal assembly's FusionMaps class's renderMap() function to pass strXML as the dataXML for the map and and render it in literal control - FusionMapsContainer.

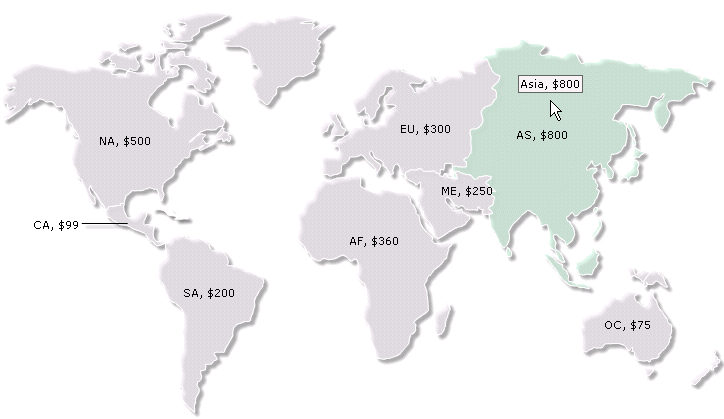

Below is the snapshot of the map that we get here.
