Exporting Map Data > Using JavaScript Menu

You can access the data of the map from its JavaScript API as well.


Setting up the map to allow JavaScript export

When using the JavaScript API to access map data, you first need to make sure of the following things:

  • You've set the registerWithJS flag of map as 1 in your HTML code
  • You're invoking the getDataAsCSV() API only after the map has been rendered (i.e., in FC_Rendered method, or after checking hasRendered()==true)

<HTML>
<HEAD>
<SCRIPT LANGUAGE="Javascript" SRC="../../JSClass/FusionMaps.js"></SCRIPT>
<SCRIPT LANGUAGE="JavaScript">
   function getData(){
      //Get reference to the map object
      var mapObj = getMapFromId("map1Id");
      //Simply alert the CSV Data
      window.alert(mapObj.getDataAsCSV());
      return;
   }
</SCRIPT>
</HEAD>
<BODY>
<CENTER>
<h2>FusionMaps and JavaScript - Export Data as CSV Example</h2>
<div id="map1div">
   FusionMaps
</div>
<script language="JavaScript">
   var map1 = new FusionMaps("../../Maps/FCMap_World.swf", "map1Id", "750", "400", "0", "1");
map1.setDataXML("<map borderColor='005879' fillColor='D7F4FF' numberSuffix=' Mill.' includeValueInLabels='1' labelSepChar=': ' baseFontSize='9'><data> <entity id='NA' value='515' /><entity id='SA' value='373' /><entity id='AS' value='3875' /><entity id='EU' value='727' /><entity id='AF' value='885' /><entity id='AU' value='32' /></data></map>");
   map1.render("map1div");
</script>
   <center><input type='button' value='Export Data as CSV' onClick='javascript:getData();'></center>
</CENTER>
</BODY>
</HTML>

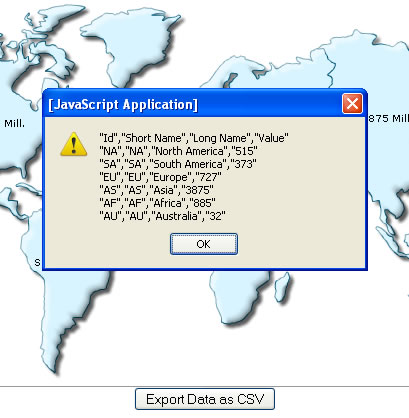

When you run this code, you should get a screen as under:

Customizing the output CSV
The customization attributes for exported CSV data still remain the same, as under (to be specified in map XML):
Attribute Description Example
exportDataSeparator

Lets you set the separator for CSV data. For ease of use, this attribute accepts the following pseudo codes for characters:

  • {tab} - To specify tab character
  • {quot} - To specify double quotes
  • {apos} - To specify single quotes

You can also specify any other character apart from these pseudo codes.

exportDataSeparator='{tab}'
exportDataQualifier

Lets you set the qualifier character for CSV data. For ease of use, this attribute accepts the following pseudo codes for characters:

  • {tab} - To specify tab character
  • {quot} - To specify double quotes
  • {apos} - To specify single quotes

You can also specify any other character apart from these pseudo codes.

exportDataQualifier='{quot}'
exportDataFormattedVal Boolean value indicating whether to output formatted data values (as shown on map) in the output CSV file. exportDataFormattedVal='1'
